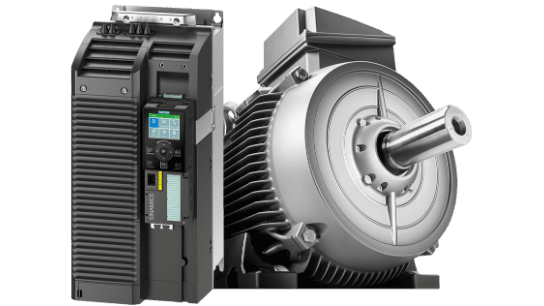

Vector Control and Direct Torque Control Drives

Mastering Drive Operations and Control: A Comprehensive Guide to Quadrants, Diode Rectifiers, Regen Drives, and More

Created byEduard Loiczli
4.5
(2 reviews)
BeginnerUpdated Apr 7, 2023
Vector Control and Direct Torque Control Drives

What You'll Learn

check_circleUnderstanding how the Induction Motor works
check_circleUnderstanding Installation
check_circleUnderstanding Characteristics
check_circleUnderstanding VFD Types
check_circleInteraction and Settings of the VFD
check_circleTorque Control and Speed Control

About This Course

Course overview:

  • Understand the 4-quadrant operation of a drive
  • Difference between: Diode Rectifier, Full Regen Drives and ACTIVE FRONT END Drives

Application of Proper Control

Understand how to apply the proper control for an application:

  • SCALAR – V/Hz
  • VECTOR – Field Oriented Control
  • Direct Torque Control – Accelerated Vector or Current Control

Drive Setup Tips

  • Understand how to avoid mistakes in setting up a VECTOR or DIRECT TORQUE CONTROL DRIVE

Your Instructor

Eduard Loiczli
Eduard Loiczli
menu_book67 courses
star504 reviews

35 years of Power Engineering & Control. Specialized in power, control, automation, instrumentation, nuclear. My name is Eduard Loiczli, Doctor Engineer in Electrical Engineering. I started programming Rockwell PLC's in 1991 and since then I have programmed and integrated many Automation Systems which required motion control, automation HMI Control and complex multitasking. I've also taught at many reputable schools. For all who are looking to learn fast and in depth Rockwell Automation, this introductory course is one in a series of four courses to launch you into a better understanding of Automation and Control. Email: eduard.loiczli@apcacademy.ca
